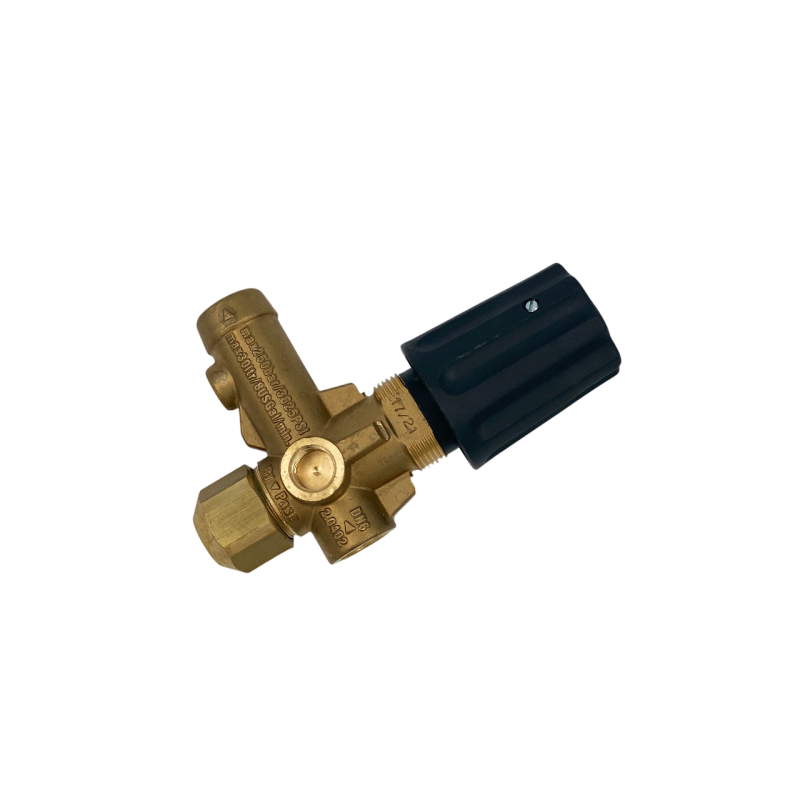

Suttner ST-261 unloader valve without chemical injector max. pressure 3,625 PSI. Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance. Straight flow-through design minimizes pressure loss through valve. Adjustable valve allows limit setting on both maximum and minimum pressures. Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
Maximum pressure: 3625 psi
Minimum pressure: 500 psi
Maximum flow rate: 8 GPM
Temperature: 176°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 1/4 F
Housing: forged brass
Suttner ST-261 unloader valve without chemical injector max. pressure 3,625 PSI. Working components constructed of high-grade stainless steel. PTFE and Viton seals for maximum heat and chemical resistance. Straight flow-through design minimizes pressure loss through valve. Adjustable valve allows limit setting on both maximum and minimum pressures. Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
Maximum pressure: 3625 psi
Minimum pressure: 500 psi
Maximum flow rate: 8 GPM
Temperature: 176°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 1/4 F
Housing: forged brass
Data sheet
Pressure regulation valve VB 9 with knob and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Pressure regulation valve VB-9 with knob, PR-5 switch and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve. Instant pressure response.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Max. Curr. Strenght 6 (2) A
Max. Voltage 250 V
Cord length: 39.4 in
International protection rating: IP 55
Unloader valve/Pressure regulation valve VB-7/3. Brass valve body. Fits CAT 4SF pumps and other pumps.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 M
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
P.A. Unloader pressure Regulation valve VB 85/280 Blue Spring, knob is not included.
SPECIFICATION:
-Maximum pressure: 4500 psi
-Working rated pressure: 4050 psi
-Inlet 1/2" F
-Outlet 1/2" F
-Bypass 1/2" F
-Maximum flow rate: 21 GPM
-Rated temperature: 195°F
-Housing: forged brass
-Material: brass
-Manufacturer: PA
