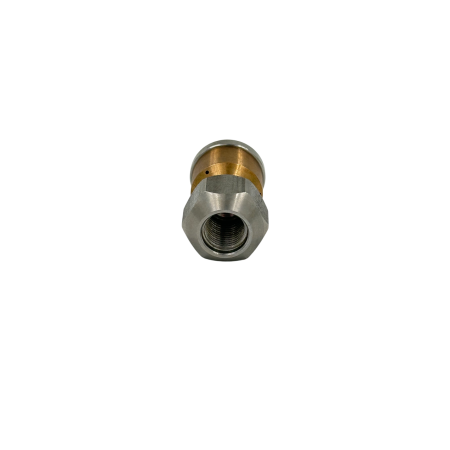

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
SPECIFICATION:
-Maximum pressure: 4000psi
-Input: 1/8” F
-Housing: Stainless Steel and Brass
-Ports: 3 rear jets
-Nozzle size: 055
Data sheet
Unloader valve/Pressure regulation valve VB-7/3. Brass valve body. Fits CAT 4SF pumps and other pumps.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 M
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Suttner Pressure Switch ST-7.1 (RED-25 bar/362 psi) for Pressure Washer. Made in GERMANY
SPECIFICATION:
-Operating (start up) pressure: 25 bar/ 362 psi
-Rated pressure: 300bar/ 4350psi
-Rated temperature: 90C/ 194F
-Max Voltage: 250V
-Max Current strength: 10.1A
-Electrical Insulation rating: 65 IP
-Material: Brass
-Color: Black
-Inlet: 1/4” M
-Cable length: 950mm/ 37 Inches
Pressure regulation valve VB-9 with knob, PR-5 switch and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve. Instant pressure response.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
Max. Curr. Strenght 6 (2) A
Max. Voltage 250 V
Cord length: 39.4 in
International protection rating: IP 55
St-33 Water intake T-strainer filter complete with filter fine core washable (stainless steel and plastic).
Maximum pressure: 87 psi
Maximum flow rate: 13.2 GPM
Temperature: 140°F
Input: 3/4 F
Outlet: 3/4 M
Housing: plastic
Screen material: stainless steel+plastic
Screen Microns: 50
ST-458.1 Orifice size 06 Red. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-458
Nozzle orifice: 06 Red
Spray angle 20°
Pressure range: 2900 - 5800 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 055
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/8 "M.
Housing: Hardened stainless steel
Pressure regulation valve VB 9 with knob and panel fitting. Brass valve body, stainless steel ball and seat. Hex-shaped non-stick check valve.
Maximum pressure: 3625 psi
Working rated pressure: 3200 psi
Maximum flow rate: 8 GPM
Rated temperature: 195°F
Input connector: 3/8 F
Outlet: 3/8 F
By pass: 3/8 F
Pressure gauge outlet: 1/4 F
Housing: forged brass
PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.
Type: PMEG
Nozzle orifice: 045
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 06. Female 3/8. Material Ss and brass. Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 4”-8” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
ST-456 Orifice size 05 Black. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.
Type: ST-456
Nozzle orifice: 05 black
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°
ST-31 Intake chemical strainer without check valve. Strainer prevents debris from entering and destroying the components. Hose barb 1/4 -1/8. Internal stainless steel weight keep chemical strainer in the bottom of the container.
Housing: plastic
Weight: stainless steel
Diameter: 20 mm / 0.8"
Length: 75 mm / 3"
Quick Screw Coupling (nipple) M22X1,5:1/4"M
Maximum pressure: 5800 psi
Temperature: 300°F
Input: M22 M
Outlet: 1/4 M
Housing: brass
Height 29 mm
PR-5 Red pressure switch is a fluid operating electro-mechanical device, which, upon reaching a pre-set (start-up)pressure 25 bar/360 psi, opens or closes an electrical control contact . Microswitch with very high resistance openings. Considerable resistance to high current values. Compact overall dimension. Three core cable.
Maximum pressure: 5076 psi
Rated working pressure: 3650 psi
Minimum pressure: 360 psi
Temperature: 167°F
Input : 1/4 F
Housing material: brass
Cord length: 37"
Max Curr./V. strength Contact: 5A-250 V
International protection rating: IP 55
ST-35 Water intake suction foot filter. High flow suction strainer ideal for tank transfer or agricultural markets. Made in Germany.
SPECIFICATION:
-Without Check valve
-Stainless steel spring and screen
-Inlet Stepped 1/2" - 3/4"/13-19 mm/ hose barb
-Corrosion-resistant heavy impact resistant plastic
-Max temperature: 140°F
-Compatible with all pressure washers
-Brass weighted to hold onto bottom of tank
ST-7 Flow switch with micro-switch. Switch-on point 1.1GPM. Mounts in any position horizontal or vertical.
Maximum pressure: 5000 psi
Minimum flow rate: 1.1 GPM
Maximum flow rate: 12 GPM
Temperature: 176°F
Input : 3/8 F
Outlet: 3/8 F
Housing: brass
Brass reed switch cord length: 47"
Contact: 10A-250 V
International protection rating: IP 65
ST-49.1 rotating sewer cleaning nozzle. Nozzle size 08. Female 3/8. Material Ss and brass . Made in Germany
Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 4”-8” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.
