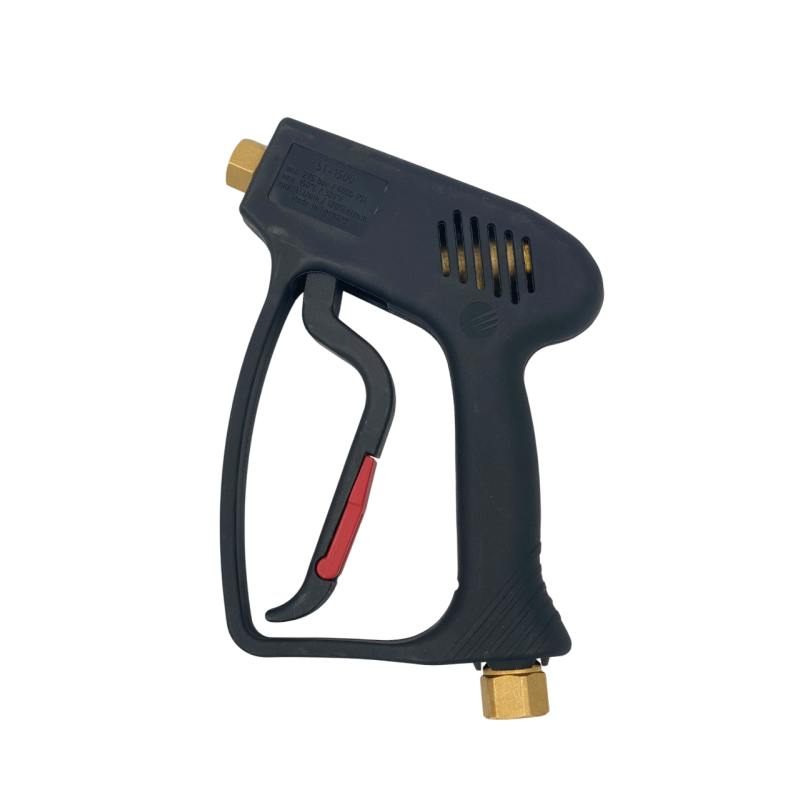

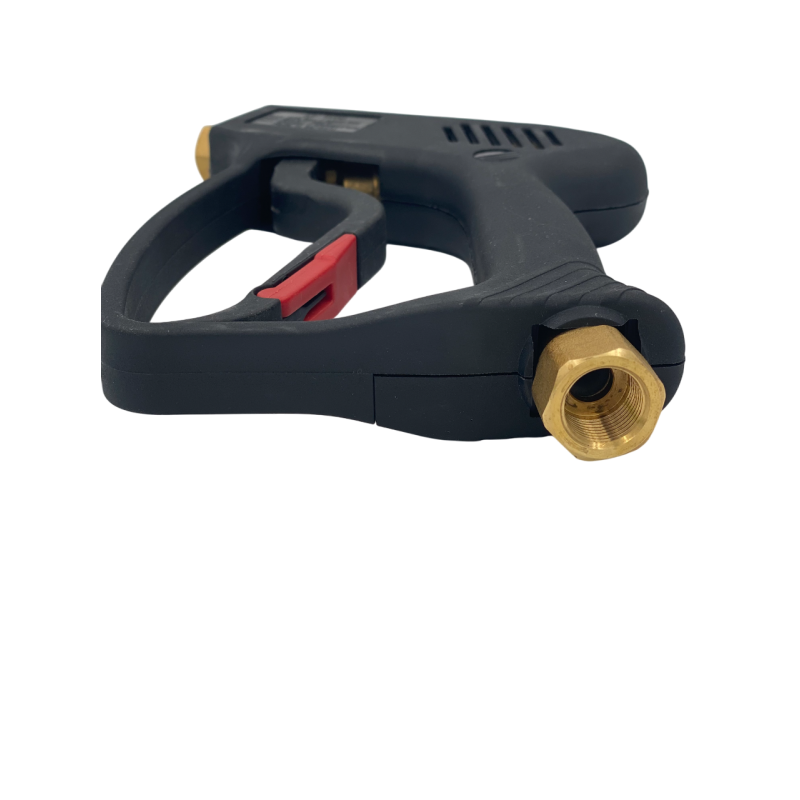

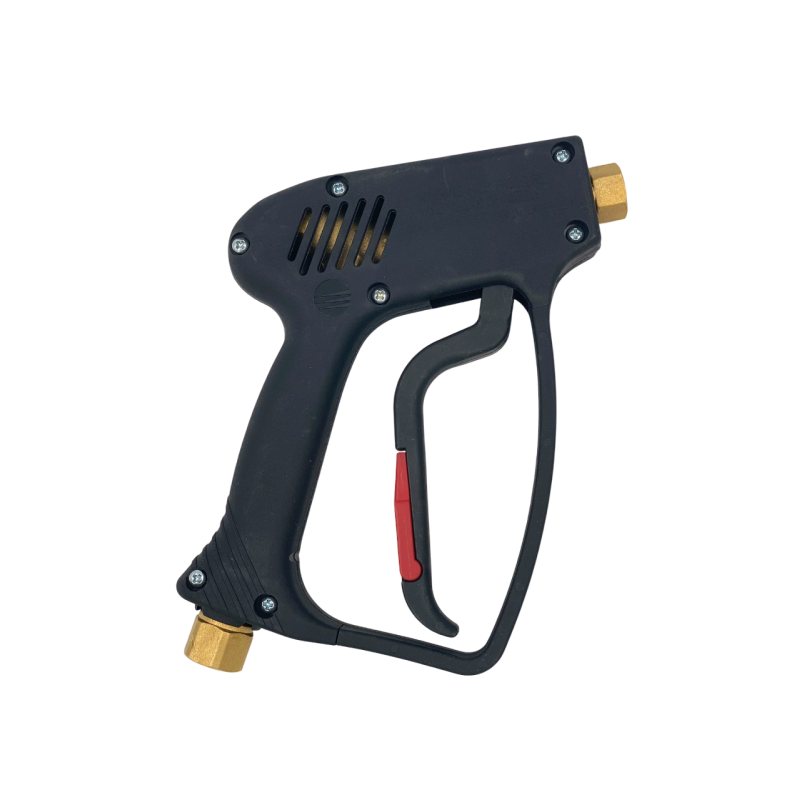

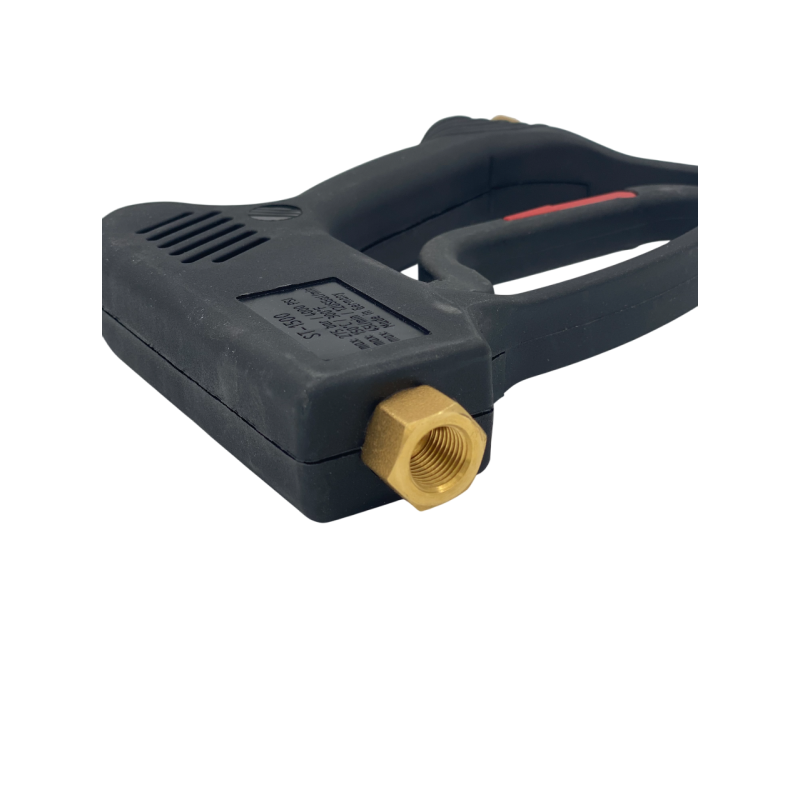

Wash Gun ST-1500 3/8"F:1/4"F

ST-31 Intake chemical strainer without check valve. Strainer prevents debris from entering and destroying the components. Hose barb 1/4 -1/8. Internal stainless steel weight keep chemical strainer in the bottom of the container.

Housing: plastic
Weight: stainless steel
Diameter: 20 mm / 0.8"
Length: 75 mm / 3"

ST-49 non-rotating sewer cleaning Grease ball nozzle. Female 1/4 8x06R. Ss hardened. Made in Germany

The Grease ball features 8 rear jets (0.6 mm) for extreme thrust and highest wall coverage of the pipe. Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes too. Completely spherical shape. Nozzle drilling as stepped bore for best protection against mechanical impact. Good for 2”-6” inch lines.

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 045
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel

ST- 2300 (old type) Relief valve intended for use on water-operated high-pressure systems such as high-pressure cleaners or water heaters.Adjustable pressure.Stainless steel ball and valve seat.

Maximum pressure: 5076 psi
Maximum flow rate: 8 GPM
Temperature: 200°F
Input : 1/4 F
Outlet: 1/4 F
Housing material: Forged brass

ST-456 Orifice size 07 Pink. Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-456
Nozzle orifice: 07 pink
Spray angle 20°
Pressure range: 2900 - 5076 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F
Spray angle: 20°

Quick Screw Coupling (nipple) M22X1,5:1/4"M

Maximum pressure: 5800 psi

Temperature: 300°F

Input: M22 M

Outlet: 1/4 M

Housing: brass

Height 29 mm

Nozzle protector. It's made out of soft Rubber which protects sensitive surfaces against damage. It also has a zinc-plated body. The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture. Suitable for nozzles 1/4" M NPT.

Maximum pressure: 5800 psi
Rated temperature: 300°F
Input: 1/4 F NPT
Outlet: 1/4 F NPT
Housing: Zinc-plated steel
Protection material: Rubber

ST-357.1 Orifice size 055 light blue . Rotating nozzle with ceramic insert. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked on mud on heavy equipment. Improved materials for longer life. Increases cleaning efficiency as much as 200%.

Type: ST-357
Nozzle orifice: 055 Light blue
Spray angle 20°
Pressure range: 1450 - 3625 psi
Inlet: 1/4 "F.
Housing: brass
Color of protective cap: Black
Temperature: 212 °F

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 06
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel

ST-60.1 Downstream Suttner foam injector with chemical metering valve, suction hose and ST-31 chemical strainer, quick couplings nickel/zinc plated brass ST-45-250 KEW, Nilfisk-Alto. Mixing of chemicals approx. 0-11.5%.Metering valve hose tail 1/4. Suction hose 39" long.Injector with dosage ST-61. Orifice size 1.6 mm.

Maximum pressure: 3625 psi
Minimum flow rate: 1.6 GPM
Maximum flow rate: 15.2 GPM
Temperature: 140°F
Housing: forged brass
Nozzle: Stainless steel
Input coupling: ST-45-250 KW
Output connector: ST-45-250 KW
Suction hose lenght: 39"

Connection for spray guns with coupling KW. Famous quick coupling system for accessories, quicker to connect and disconnect lance, reducing downtime.(KEW, Nilfisk-Alto) For lances moulded handles. Installation recommendation: Seal with liquid thread sealant only.

Material: stainless steel
Temperature: 300°F
Input connector: Coupling KW
Outlet: 1/4" F

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 055. Female 1/4. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Without centric hole, very good cleaning effect due to rotating nozzle jets.

Suttner ST-6 Flow Switch, All position (Horizontal or Vertical) Spring assisted brass magnet. Made in Germany

FEATURES:

-Horizontal or vertical mount

-Easy brass reed switch replacement.

SPECIFICATION:

-Max. Pressure: 5,070 PSI/350 bar.

-Min. Pressure: 75 PSI

-Max. Flow Rate: 8 GPM/ 30 ltr.

-Min. Flow Rate: 1 GPM

-Max Voltage: 250 V

-Max Current: 1 Amps

-Max: Fluid Temperature: 180° F/ 80 ° C

-Cable Length: 47.0 in/ 1200 mm.

-Inlet & Outlet: 3/8 MNPT

-Housing: Forged Brass

Flow Switch ST-7 1.5L/Min open 0.4 GPM

ST-7 Flow switch with micro-switch. Switch-on point 0.4 GPM. Mounts in any position horizontal or vertical.

SPECIFICATION:

-Maximum pressure: 5000 psi

-Minimum flow rate: 0.4 GPM

-Maximum flow rate: 12 GPM

-Temperature: 176°F

-Input : 3/8 F

-Outlet: 3/8 F

-Housing: Brass

-Brass reed switch cord length: 47"

-Contact: 10A-250 V

-International protection rating: IP 65

ST-49.1 rotating sewer cleaning nozzle. Nozzle size 05. Female 1/8. Material Ss and brass . Made in Germany

Suttner rotating nozzle for sewer cleaning ST-49.1. Ideal for 1”-3” lines. Without centric hole, very good cleaning effect due to rotating nozzle jets.

PMEG nozzles is high impact washJet flat spray nozzles are ideal for pressure washing, cleaning and car wash applications. Advantages of Power-MEG nozzles is: 3 time faster, saves up to 60% water, 3 times higher impact. Hardened stainless steel construction provides long wear life and flow control accuracy. Recommended for surface cleaner use. The WashJet product line, however, was designed specifically to operate in high-pressure applications and will provide improved cleaning effectiveness and a better distribution of impact across the entire spray pattern.

Type: PMEG
Nozzle orifice: 05
Spray angle 15°
Pressure range: 300 to 4000 psi (20 to 275 bar)
Inlet: 1/4 "M.
Housing: Hardened stainless steel
